Woods Mower Belt on Farmall Super C

Goto page 1, 2  Next


Post new topic
View previous topic :: View next topic
Author Message
1946JDA
Regular


Joined: 09 Nov 2014
Posts: 32


Report to Moderator

PostPosted: Mon May 10, 2021 7:19 am    Post subject: Woods Mower Belt on Farmall Super C Reply to specific post Reply with quote

I just got a Farmall Super C with a Woods 59 belly mower. This is the first time I have ever had a belly mower on anything. Everything was functional when I looked at the tractor. Unfortunately, the belt somehow came off getting the tractor loaded and unloaded when I picked it up. I tried to put it back on per the diagram on the deck and how it looked right at the tractor, but I ended up with what appeared to be a full twist in the belt.
Does anyone have a link to a manual for this mower on this particular tractor? I went to Woods website and found nothing.
Thanks

Back to top
View user's profile
fastfarmall
Tractor Guru


Joined: 05 Feb 2015
Posts: 6023


Report to Moderator

PostPosted: Mon May 10, 2021 9:36 am    Post subject: Re: Woods Mower Belt on Farmall Super C Reply to specific post Reply with quote

If you got it on according to the diagram, your fine,but it will have a half of twist from going flat around the blades,up to the power drive pulley where it gets its power, But mine has to be fiddle string tight,i have a 3 foot bar, i put my foot on, and 15/16's wrench's to tighten the bolt

Back to top
View user's profile
kshansen
Regular


Joined: 06 Sep 2010
Posts: 29


Report to Moderator

PostPosted: Mon May 10, 2021 12:03 pm    Post subject: Re: Woods Mower Belt on Farmall Super C Reply to specific post Reply with quote


Guess the first question I would have is where is the pulley that drives the mower located? Is it a large pulley at the back of the PTO or is it a pulley on the side of the PTO?

My BN uses a pulley mounted on the very rear of the PTO and is the L306 with three blades.

Back to top
View user's profile
1946JDA
Regular


Joined: 09 Nov 2014
Posts: 32


Report to Moderator

PostPosted: Mon May 10, 2021 12:46 pm    Post subject: Re: Woods Mower Belt on Farmall Super C Reply to specific post Reply with quote

This one is the pulley on the side of the pto

Back to top
View user's profile
1946JDA
Regular


Joined: 09 Nov 2014
Posts: 32


Report to Moderator

PostPosted: Mon May 10, 2021 12:49 pm    Post subject: Re: Woods Mower Belt on Farmall Super C Reply to specific post Reply with quote

I am trying to figure out where I could have gone wrong because the belt looks like it has a complete 360 degree twist. I can't even see how that is possible when I know I have the deck correct.

Back to top
View user's profile
kshansen
Regular


Joined: 06 Sep 2010
Posts: 29


Report to Moderator

PostPosted: Mon May 10, 2021 3:05 pm    Post subject: Re: Woods Mower Belt on Farmall Super C Reply to specific post Reply with quote

CVPost-1946JDA wrote:
(quoted from post at 21:46:53 05/10/21) This one is the pulley on the side of the pto


Hopefully someone has the drawing that shows the side pulley design as my manual only shows the rear pulley set up.

I know others here have the style like you do so hopefully they chime in before the grass gets too tall!

Back to top
View user's profile
brooktre
Regular


Joined: 07 Jul 2018
Posts: 209


Report to Moderator

PostPosted: Mon May 10, 2021 3:30 pm    Post subject: Re: Woods Mower Belt on Farmall Super C Reply to specific post Reply with quote

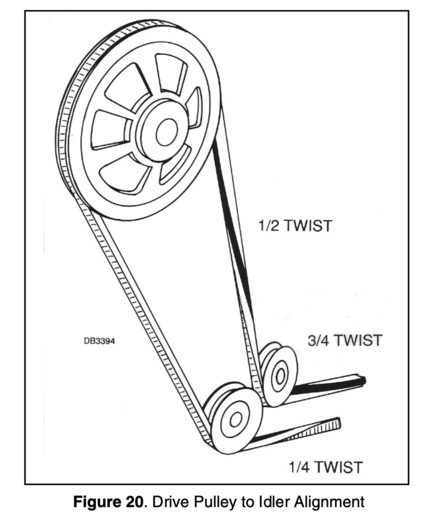

1946JDA - I have a Woods 306 mower on a Farmall A. The belt is driven off of the side of the PTO so it may be similar. Here is how my belt is routed.


Back to top
View user's profile
brooktre
Regular


Joined: 07 Jul 2018
Posts: 209


Report to Moderator

PostPosted: Mon May 10, 2021 3:39 pm    Post subject: Re: Woods Mower Belt on Farmall Super C Reply to specific post Reply with quote

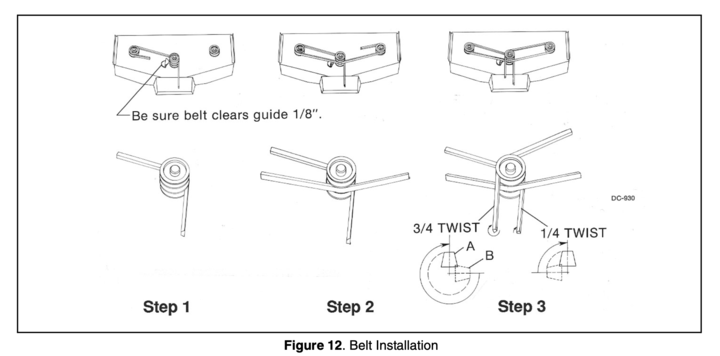

Forgot to include a picture of the lower 2 pullys...




Back to top
View user's profile
MtMan
Long Time User


Joined: 20 Sep 2014
Posts: 762


Report to Moderator

PostPosted: Mon May 10, 2021 5:54 pm    Post subject: Re: Woods Mower Belt on Farmall Super C Reply to specific post Reply with quote

I have one on a Super A Farmall and I believe the set up is the same as yours. I had a new belt put on by the dealer and it has 2 turns on the belt. I know they have to be in the right spot or it will not last long. Belts are expensive. I was told to keep the belt really really tight. So far it has held up good for a couple of years.

Back to top
View user's profile
gene bender
Tractor Guru


Joined: 28 Jun 2009
Posts: 11287


Report to Moderator

PostPosted: Tue May 11, 2021 3:33 am    Post subject: Re: Woods Mower Belt on Farmall Super C Reply to specific post Reply with quote

that one idler pulley is wrong as it should be smooth so no twist is needed between the drive and the grouved one shown that twist
never did work and hasnt been used in several yrs that pic is from a early dia and was changed to a smooth one. I have had a 59 on
a B SINCE 1965 and have sold them and serviced them. Put the belt on the mower bring the belt back to the mule drive and the twists
will explant themselves keeping belt tight should last for many yrs. Your C is the mule drive off the PTO or belt pulley

Back to top
View user's profile
Russ from MN
Tractor Guru


Joined: 11 Feb 2006
Posts: 12275
Location: N MN

Report to Moderator

PostPosted: Tue May 11, 2021 4:26 am    Post subject: Re: Woods Mower Belt on Farmall Super C Reply to specific post Reply with quote

I thought Woods had owners manuals you could download on their website? I printed one, but it was 12 years ago. the belt needs to be tight, especially if your mowing heavy grass. I ran a stick in the blades in ours and it killed the engine on our C, didn't hurt the belt.

Back to top
View user's profile
1946JDA
Regular


Joined: 09 Nov 2014
Posts: 32


Report to Moderator

PostPosted: Tue May 11, 2021 5:36 am    Post subject: Re: Woods Mower Belt on Farmall Super C Reply to specific post Reply with quote

Good deal! The deck has the diagram on it but no notation on the twist in the belt. Hopefully this solves my troubles. Thanks

Back to top
View user's profile
1946JDA
Regular


Joined: 09 Nov 2014
Posts: 32


Report to Moderator

PostPosted: Tue May 11, 2021 5:38 am    Post subject: Re: Woods Mower Belt on Farmall Super C Reply to specific post Reply with quote

Good info. Thanks!

Back to top
View user's profile
1946JDA
Regular


Joined: 09 Nov 2014
Posts: 32


Report to Moderator

PostPosted: Tue May 11, 2021 5:44 am    Post subject: Re: Woods Mower Belt on Farmall Super C Reply to specific post Reply with quote

I've been looking around and near as I can tell Woods manual downloads for the old stuff went away 7 or 8 years ago.

Back to top
View user's profile
brooktre
Regular


Joined: 07 Jul 2018
Posts: 209


Report to Moderator

PostPosted: Tue May 11, 2021 11:43 am    Post subject: Re: Woods Mower Belt on Farmall Super C Reply to specific post Reply with quote


That's interesting Gene. I bought my L306A mower in 1997 and the manual is from 1995. I also have a pdf copy of the manual from 2007 that has the same routing. When I changed the belt (once in 24 years) I had to follow the manual to get it right because it takes a convoluted path.
