YM1500 Buttons and Switches?

Peachbottom

New User
My Yanmar YM1500 doesn't have any electrical hooked up. The previous owner kinda tore the wiring apart and left it. It starts and runs, but that's it. I have a wiring diagram and plan to dive into it this weekend to get things back up and running. My issue is I have a couple switches that I can't quite identify.

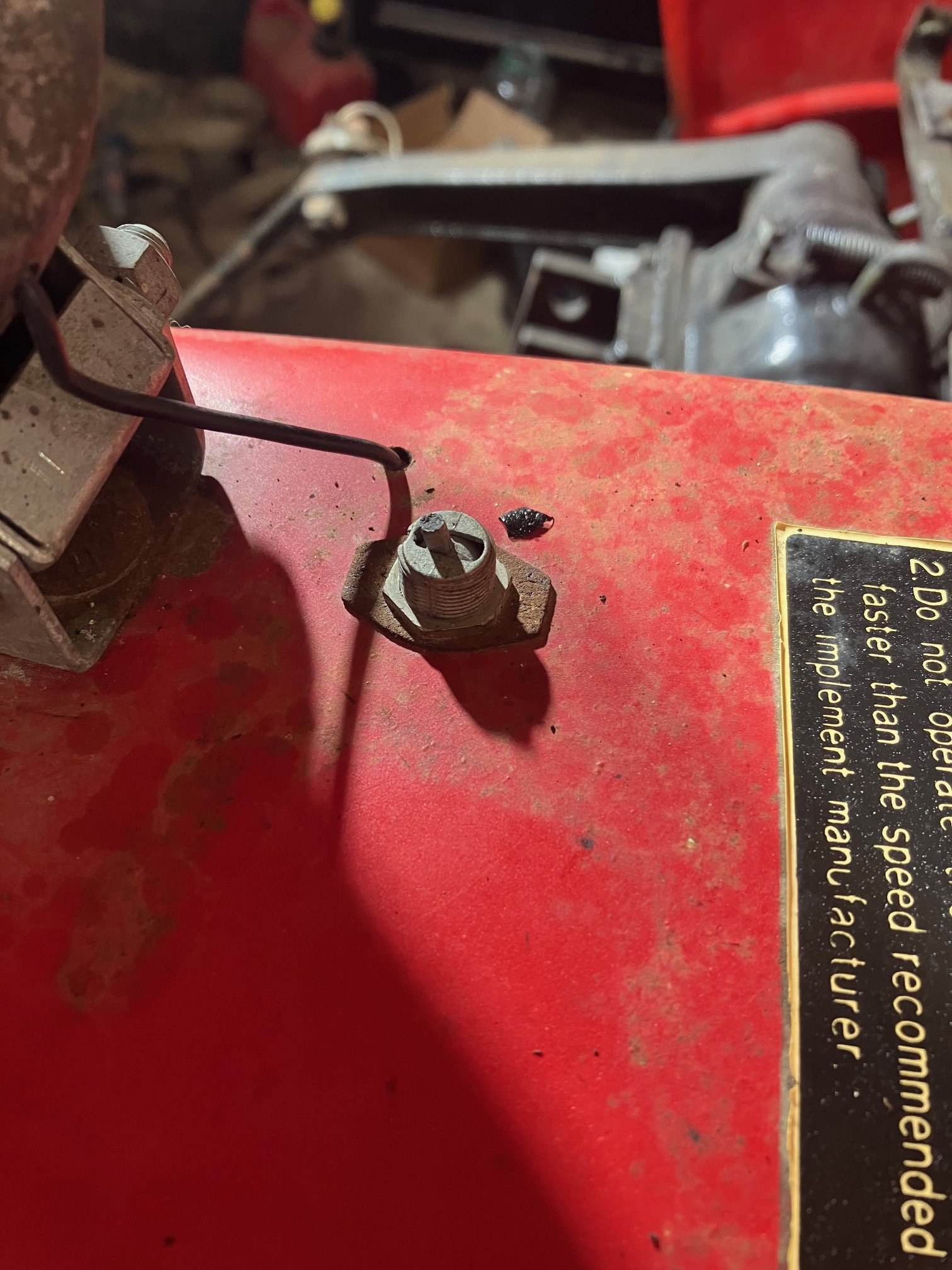

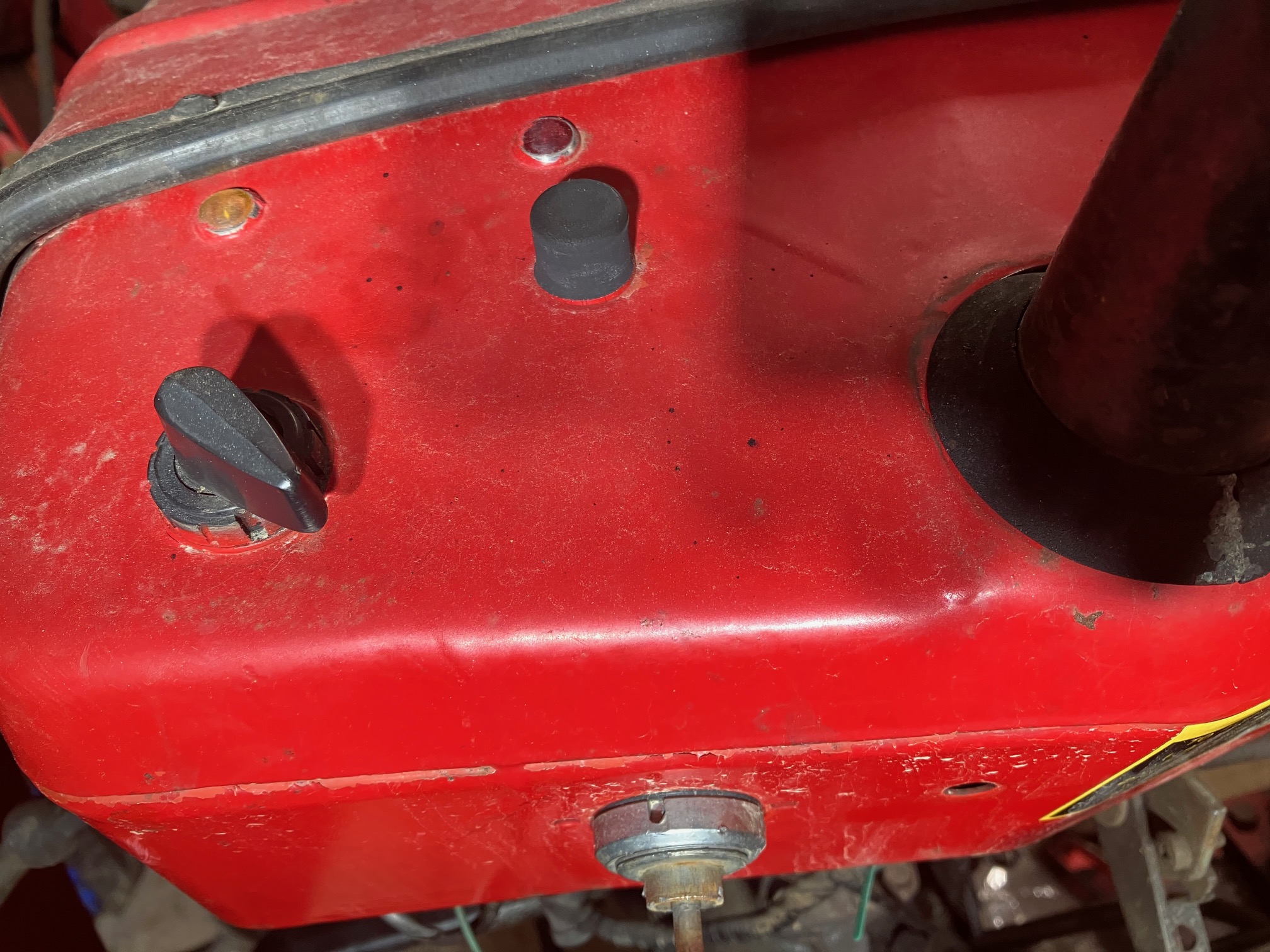

I know the red and yellow lights are oil and temp. The black button is the horn. The black switch should be the turn signals? I have what appears to be a broken switch on the front of the dash that I can't seem to figure out, and I'm guessing the switch by the rear light on the fenders is just a regular switch.

The tractor is mint and I'm just finishing up the brakes and a few seals. All that is left is the electro-digicals.



My Yanmar YM1500 doesn't have any electrical hooked up. The previous owner kinda tore the wiring apart and left it. It starts and runs, but that's it. I have a wiring diagram and plan to dive into it this weekend to get things back up and running. My issue is I have a couple switches that I can't quite identify.

I know the red and yellow lights are oil and temp. The black button is the horn. The black switch should be the turn signals? I have what appears to be a broken switch on the front of the dash that I can't seem to figure out, and I'm guessing the switch by the rear light on the fenders is just a regular switch.

The tractor is mint and I'm just finishing up the brakes and a few seals. All that is left is the electro-digicals.

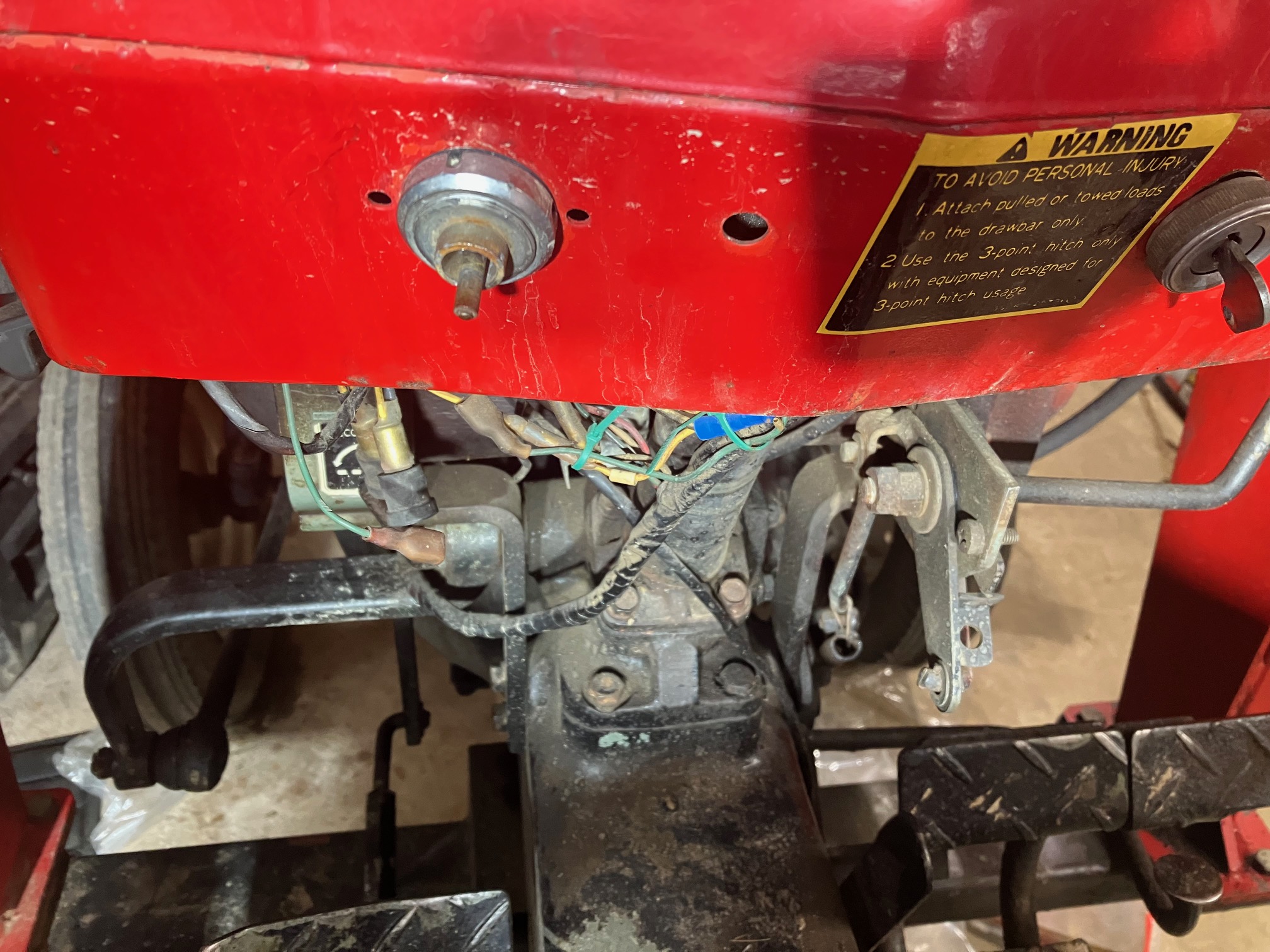

View attachment 71982View attachment 71983
View attachment 71981
See the attached doc for some help as a comparison. Many are in English.
Compliments of the YTOG.


Attachments

  • YANMAR ELECTRICAL SCHEMATICS YM 3-DIGIT MODELS R3_compressed.pdf
    2.7 MB · Views: 42
